Hot-pluggable Dual LC Video SFP Module up to 40km with RoHS-6 Compliant
SOPTO’s video series transceivers are high performance, cost effective modules for simplex or duplex video transmission application over single mode fiber. The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.
Features
l HD-SDI SFP Receiver available
l SD-SDI SFP Receiver available
l 3G-SDI SFP Receiver available
l SMPTE 297-2006 Compatible
l Metal enclosure for Lower EMI
l PIN photodetector
l Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
l Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
l Without DDM( Digital Diagnostic functions)
l Compatible with RoHS
l +3.3V single power supply
l Operating case temperature:
Standard : 0 to +70°C
Application

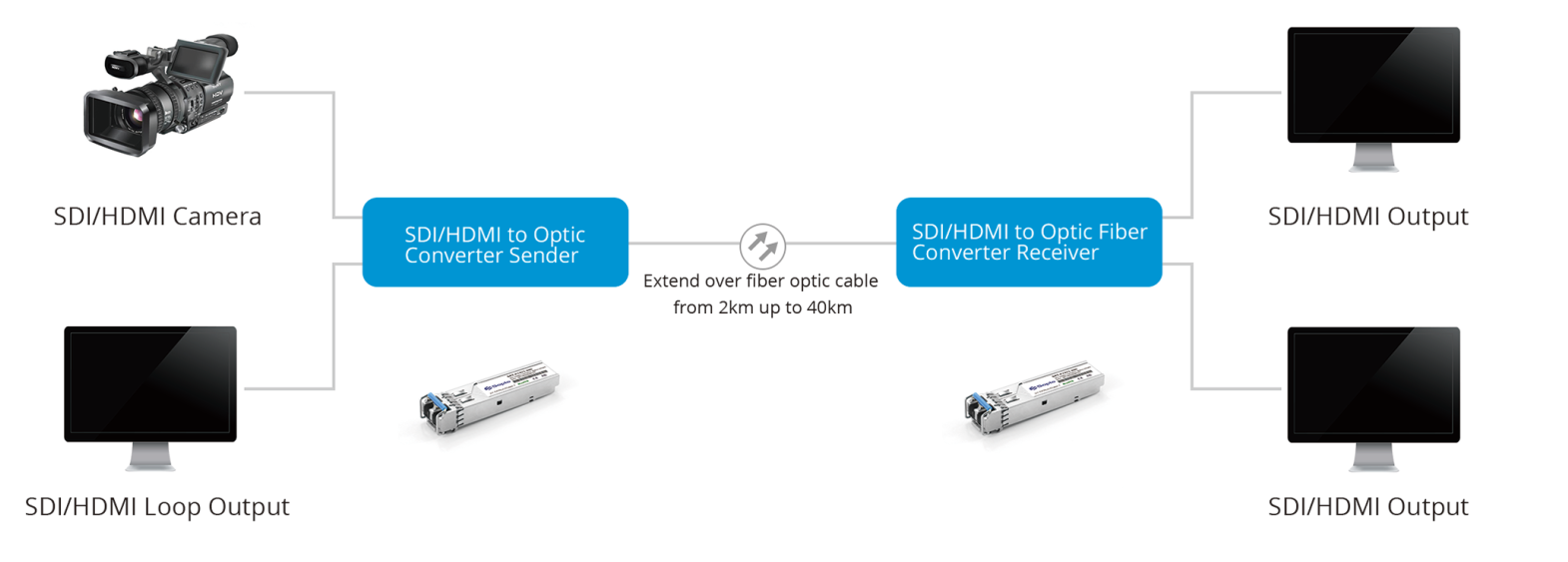

l SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces
l HDTV/SDTV Service Interfaces
Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European EC, RoHs
Applications
● SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.
● HDTV/SDTV Service Interfaces.
Ordering Information
| PN | Data Rate(Gbps) | Distance | Fiber | Output Power(dBm) | Sensitivity(dBm) | Interface | Temp. | DDM |
| Normal |
| SPT-P13V3-10D | 3 | 10km | SM | -7 ~ 0 | -22 | Duplex LC | 0 to 70℃ | D |
| SPT-P13V3-20D | 3 | 20km | SM | -6 ~ 0 | -22 | Duplex LC | 0 to 70℃ | D |
| SPT-P55V3-40D | 3 | 40km | SM | -2 ~ 3 | -22 | Duplex LC | 0 to 70℃ | D |
| Dual Tx |
| SPT-P2T13V3-20D | 3 | 20km | SM | -6 ~ 0 | Null | Duplex LC | 0 to 70℃ | D |
| SPT-P2T13V3-40D | 3 | 40km | SM | -2 ~ 3 | Null | Duplex LC | 0 to 70℃ | D |
| Single Rx |

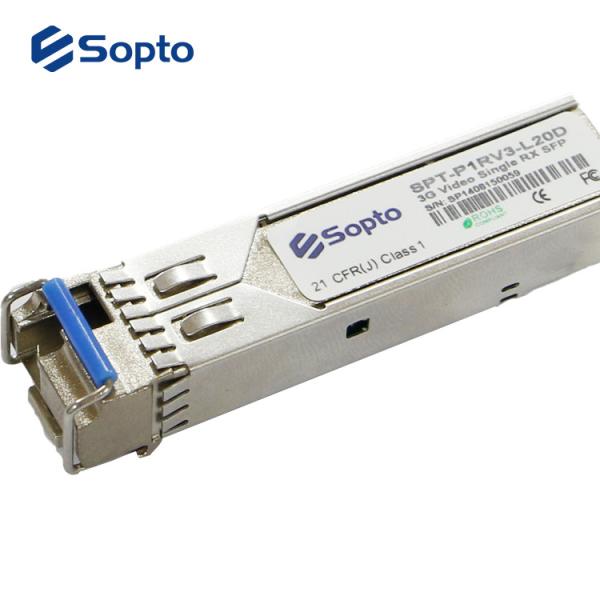

| SPT-P1RV3-L20D | 3 | 20km | SM | Null | -22 | Simplex LC | 0 to 70℃ | D |
| Dual Rx |
| SPT-P2RV3-L40D | 3 | 40km | SM | Null | -22 | Simplex LC | 0 to 70℃ | D |
