1.25gbps 1310nm 10km SFP Optical Transceiver Module With DDM

Product Categories
Shenzhen Sopto Technology Co., Ltd
Contact Now

1.25gbps 1310nm 10km SFP Optical Transceiver Module With DDM

Brand Name : Sopto

Model Number : SPT-P131G-10TD

Certification : CE RoHS FCC

Place of Origin : Shenzhen China

Payment Terms : L/C, T/T,Paypal, D/P

Supply Ability : 50000 pcs per month

Delivery Time : 5-8 days

Packaging Details : 10 pcs standard boxes, mass order with carton box package can do OEM according to customer's request.

Brand : Sopto

Wavelength : 1310nm

Fiber type : Single Model

Connector : LC Interface with DDM

Transmission distance : 10km

Date rate : 1.25Gbps

Operating temperature : Commercial 0 to 70 Industrial -40 to 85

Compatible : huawei/HP/cisco

Contact Now

1.25gbps 1310nm 10km SFP Optical Transceiver Module With DDM



Description of 1.25g sfp module



The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.



Features of 1.25g sfp module



● Dual data-rate of 1.25Gbps/1.063Gbps operation

● 1310nm FP laser and PIN photo detector for 20km transmission

● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

● Digital Diagnostic Monitoring: Internal Calibration or External Calibration

● Compatible with SONET OC-24-LR-1

● Compatible with ROHS

● +3.3V single power supply

● Operating case temperature:

    Standard: 0 to +70°C

    Industrial: -40 to +85°C



Applications



●  Gigabit Ethernet

●  Fiber Channel

●  Switch to Switch interface

●  Switched backplane applications

●  Router/Server interface

●  Other optical transmission systems

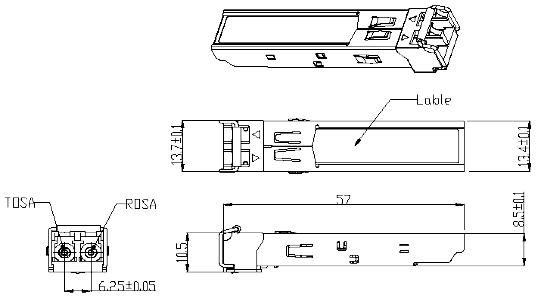

Mechanical Dimensions



1.25gbps 1310nm 10km SFP Optical Transceiver Module With DDM





Ordering Informations

Part Number Product Description
SPT-P131G-10 1310nm, 1.25Gbps, 10km, 0ºC ~ +70ºC
SPT-P131G-10D 1310nm, 1.25Gbps, 10km, 0ºC ~ +70ºC, DDM
SPT-P131G-10TD 1310nm, 1.25Gbps, 10km, -40ºC ~+85ºC, DDM
1.25gbps 1310nm 10km SFP Optical Transceiver Module With DDM
1.25gbps 1310nm 10km SFP Optical Transceiver Module With DDM
