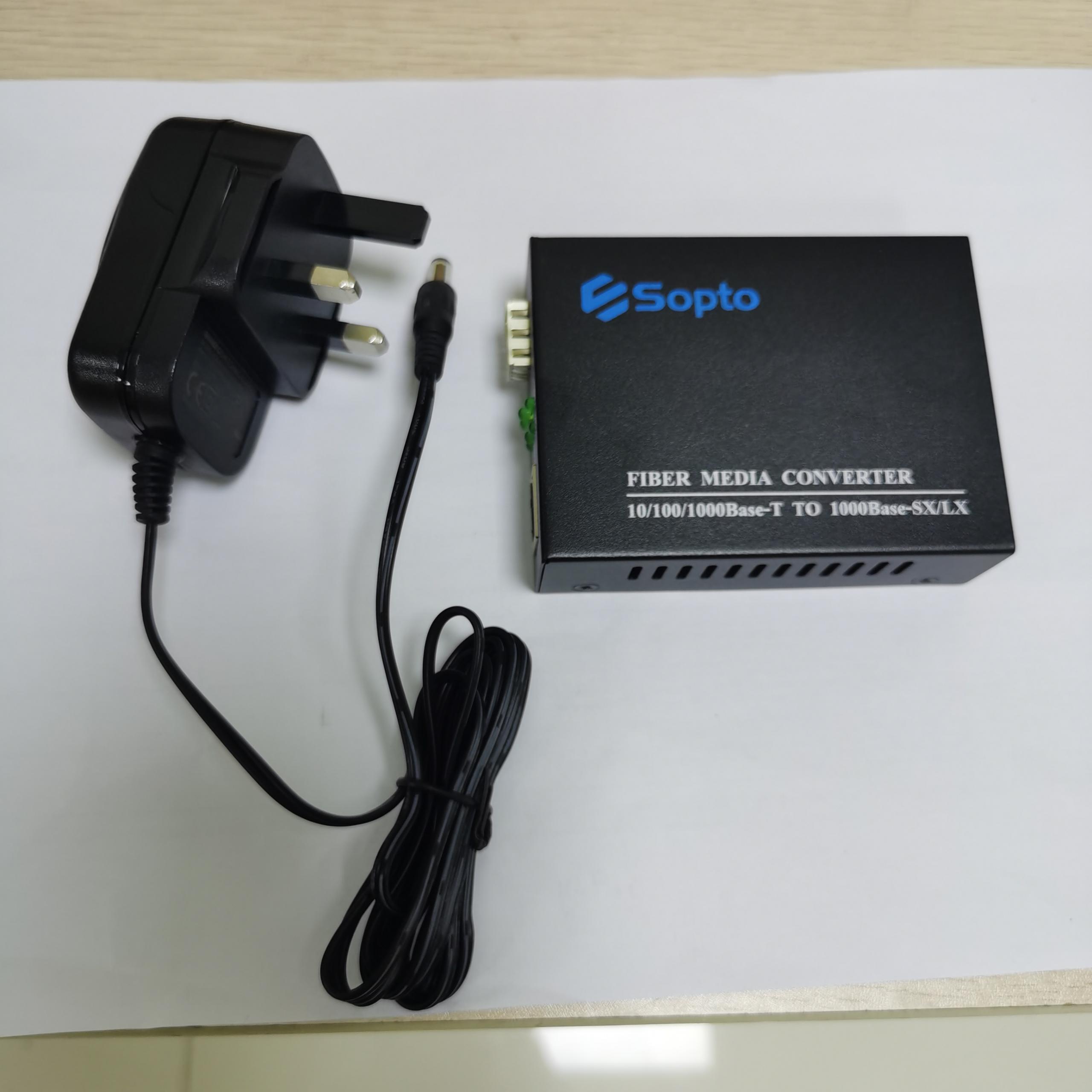

10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
Feature:
l Built-in IP-based Web Interface
l Supporting remote and local management
l Supporting IEEEE 802.3X Frame Flow Control for Full-Duplex mode
l Store and Forward mechanism
l Manual IP address setting/DHCP client for IP address assignment
l SNMP v1 / v2c monitor / private Enterprise MIB
l Event trap and SNMP trap support
l Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port
l Supports Port Status / Ethernet Statistics on both TP and Fiber interface
l Supports Maximum frame size to 9K bytes
l Loop detection / Broadcast / Multicast / Unicast storm control
l Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
l 802.1p Tag Priority / IP address priority / IP DSCP option in
l Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies
l TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
l 16 TCP / UDP Filter groups
l Firmware upgrade via remote Web interface
l LED indicators for easy network diagnosing
l Internal Power supply optional
Applications
● Access Control Systems
● Building and Environmental Control Systems
● Tamper Switch
● 10/100/1000 Mbps Ethernet Media Converter
● High Speed Computer Links
Technical Specifications
| Parameters | Specifications |
| Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX |
| Optic Wavelength | N/A |
| Transmission Distance | Multimode: 2km Single mode:10km~120km |
| Port | One Rj45, One SFP Socket |
| Led Indicators | Optical Link/Data Activity Electrical Link/Data Activity |
| MDI/MDI-X | Auto selection |
| Mac address table | 4K |
| Memory buffer | 256K |
| Data | Data Interface: Ethernet Data Rate:10/100/1000 Mbps |
| Power Supply | External : 5V DC 2A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz Power Consumption : ≤5W |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +80 °C |
| Relative Humidity | 5% to 90% (non-condensing) MTBF: >100,000 hours |
| Dimensions | 95mm * 70 mm * 25mm |
| Net Weight | 0.165 kg |
| Emissions | FCC , Class A, RoHS, CE Mark |

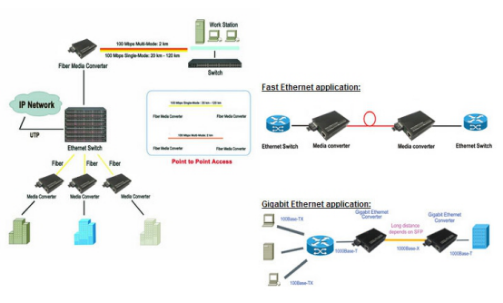

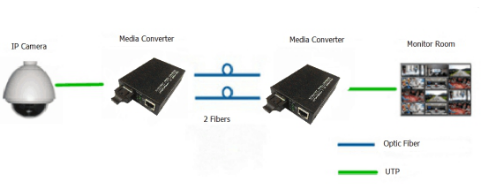

Connection Diagram
Ordering Informations
| Part Number | Product Description |
| SPM-ET2X-PX | 10/100/1000Base-Tx to 1000Base-FX, SFP to RJ45 fiber media converter , without module |
| SPM-ET1X-PX | 1000Base-Tx to 1000Base-FX, SFP to RJ45 fiber media converter , without module |
| SPM-ET4X-PX | 10/100Base-Tx to 100Base-FX, SFP to RJ45 fiber media converter , without module |
