Simplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area Network

Shenzhen Sopto Technology Co., Ltd
Contact Now

Simplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area Network

Place of Origin : Guangdong, China

Brand Name : Sopto

Model Number : SPAD-SCF-SCF-P-SS-PES

Supply Ability : 20000 Piece/Pieces per Month

Packaging Details : 1000 pieces per box

MOQ : 10 - 99 Pieces

Price : $0.12

Product Name : Fiber Optic Adaptor

Warranty : 1~3 Years

Connector : SC

Endface : PC

Fiber count : 1 core

mode : SM

Operating Temperature : -40~75 ℃

Storage Temperature : -45~85 ℃

Insertion Loss (Typical) : ≤0.3 dB

Repeatability : ≤0.2 dB

Port : Shenzhen Port

Contact Now

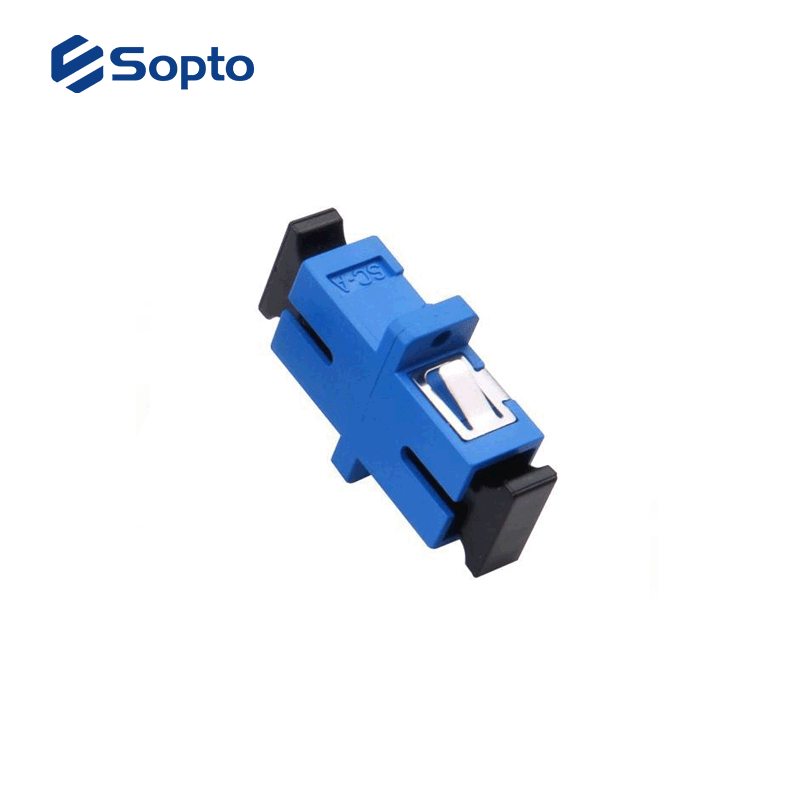

fiber optics connector Adaptor Simplex SC/SC Female to Female PC SM Plastic shell with Ears with Spring strip

Product Description



Sopto fiber optic adapters are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. people sometimes also name them to be mating sleeves and hybrid adapters, mating sleeves means this fibre optic adapter is used to connect the same type fiber optic connectors, while hybrid adapters are the fiber optic adapter types used to connect different kinds of fiber optic connectors. SOPTO fiber optic adapters have a name for its stability.



Features

>Low insertion loss, high return loss

>Good compatibility

>High precision of mechanical dimensions

>High reliability & stability

>Ceramic or Bronze Sleeve

>Simplex / Duplex



Applications

>Local Area Network

>CATV System

>Telecommunication Networks

>Equipment Test



Specifications

Parameter

 Unit

 LC, SC, FC, MU, ST, SC-ST, FC-ST,   FC-SC, FC-LC, FC-MU

 SM

 MM

 PC

 UPC

 APC

 PC

 Insertion Loss (Typical)

 dB

 ≤0.3

 ≤0.2

 ≤0.3

 ≤0.2

 Return Loss

 dB

 ≥45

 ≥50

 ≥60

 ≥30

 Exchangeability

 dB

 ≤0.2

 Repeatability

 dB

 ≤0.2

 Durability

 Time

 >1000

 Operating Temperature

 ℃

 -40~75

 Storage Temperature

 ℃

 -45~85



Ordering Information

Ordering Info. for Adaptor

Part Number:SPAD - SC  F - SC   F - A  -S  S- P E S

                                    1   2     3     4   5    6  7  8 9 10
  Product Description:Adaptor   Simplex SC Female/SC Female APC SM      Plastic shell with Ears with Spring strip

1 - Connector A

LC SC FC ST etc

2 - Connector A   Type

F:Female ;       M:Male

3 – Connector B

LC SC FC ST etc

4 – Connector B Type

F:Female ;     M:Male

5 - Endface

U:UPC   polish;  P:PC polish;  A:APC polish

6 - Communication Type

S:Simplex;    D:Duplex;   Q:Quadruple ;   Null:   Multicores

7 - Adapted Fiber Type

S:SM; M:MM ; Null:not Specified

8 -Shell Material

P:Plastic;    PM:Half Plastic Half Metal;    M;Metal

9 -Structure 1

E:with Ears;       Null:without Ears

10 - Structure 2

S:with Spring   strip;       Null:without   Spring strip



Simplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area NetworkSimplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area NetworkSimplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area NetworkSimplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area Network

Company Information

 Simplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area NetworkSimplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area Network

Packaging & Shipping

 Simplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area Network

Certifications

 Simplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area Network

FAQ

 1.    Are you the real manufacturer?

Yes. Sopto is Group background. We are manufacturers of fiber cables, fiber, optic active and passive components, and PON equipment.



2.    Do you offer Compatible Services?

Yes, we offer compatible service with Cisco, Nortel, Extreme, Foundry, Alcatel, Allied, HP, 3COM, Juniper, Enterasys....



3.    Does sopto accept a small order?

Yes, it is available. Sopto support new projects of our customers and a long-term trustworthy relationship always starts from a small order.



4.    What is your delivery time?

It depends on the quantity of the order. Normally we have them in stock, but for the busy season, it takes 1-3 working days.



5.    What payment methods do you support?

The methods are followed: T/T, L/C, Western Union and PayPal.



6.    Who are your main customers?

All our customers are valuable. We have more than 600 customers worldwide. China Telecom, China Mobile, China Unicom and SOHU are our main domestic customers.Simplex SC/SC Fiber Optic Cable Connectors Female To Female For Local Area Network
