2 ~ 576 Cores Duct Outdoor Optical Cable Single Mode or Multi Mode Available
The duct fiber optical cable is used for the outdoor cable in the access network or the customer premises network. Pipeline optical cable is generally used in urban areas. The environment in which the pipeline is laid is relatively good. Therefore, there is no special requirement for the cable sheath, and no armoring is required. The length of the laying section and the position of the splicing point must be selected before laying the pipe.
Features
● 2 ~ 576 cores
● Steel wire/FRP as strength member.
● Aluminum tape is more suitable for piping
● Loose-tube twisted single sheath or central tube structure
● Loose sleeve material with good hydrolysis resistance and high strength;
● Compact structure,excellent waterproof performance, excellent mechanical performance and temperature performance
● Bunched or ribbon fiber
● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM (OM1, OM2, OM3, OM4) are available;
● PE, AT,LSZH outer jacket material optional
Hot Model

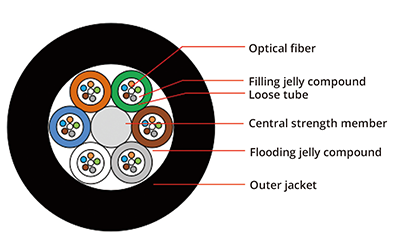

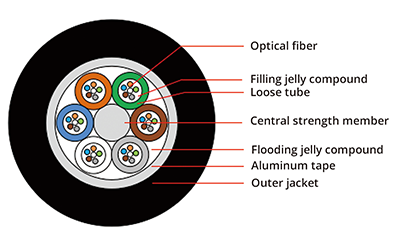

GYTA GYFTY
Sopto fiber optic cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC
Applications
● Long-distance backbone network
● Urban ring network
● Access Network, FTTX
● Relay between communication machine rooms
● Building cable in integrated wiring
Ordering Information
| Cable Type | Product Description | Application |
| GYTA | Outdoor optical cable, Metal strength member; Aluminum-polyethylene adhesive jacket | Duct |
| GYDTA | Outdoor optical cable, Optical fiber ribbon, Metal strength member; Aluminum-polyethylene adhesive jacket | Duct |
| GYFTA | Outdoor optical cable, Non-metal strength member ; Aluminum-polyethylene adhesive jacket | Duct |
| GYTZA | Outdoor optical cable, Metal strength member; Aluminum-LSZH adhesive jacket | Duct |
| GYDTZA | Outdoor optical cable, Optical fiber ribbon, Metal strength member; Aluminum-LSZH adhesive jacket | Duct |
| GYDFXY | Outdoor optical cable, Optical fiber ribbon, Central tube structure;Non-metal strength member ; PE jacket | Duct |
| GYFY | All dielectric reinforced optical cable ,Non-metal strength member; Glass yarn strength member ,PE outer jacket | Aerial or Duct |
| GYFTY | Outdoor optical cable, Non-metal strength member ; PE jacket | Aerial or Duct |
| GYFXY | Outdoor optical cable, Central tube structure;Non-metal strength member ; PE jacket | Aerial or Duct |
| GYXS | Outdoor optical cable, Central tube structure;Single steel wire armoring; Steel-polyethylene adhesive outer jacket | Aerial or Duct |
| GYDXTW | Outdoor optical cable, Optical fiber ribbon, Central tube structure; Steel-polyethylene adhesive outer jacket | Aerial or Duct |
| GYDFXY | Outdoor optical cable, Optical fiber ribbon,Central tube structure;Non-metal strength member ; PE jacket | Aerial or Duct |
| GYFTZY63 | Outdoor optical cable, Non-metal strength member; HDPE inner jacket; Glass yarn strength member ； LSZH Outer jacket | Aerial or Duct |
| GYFXZS | Outdoor optical cable, Central tube structure;Non-metal strength member ; Glass yarn strength member；Steel tape；LSZH outer jacket | Aerial or Duct |
| GYFTZY | Outdoor optical cable, Non-metal strength member; LSZH Outer jacket | Aerial or Duct |
| GYXTW | Outdoor optical cable, Metal strength member; PE jacket with steel wire | Aerial or Duct |
Notes:
1.Flooding jelly compound default
2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands;
4.The design flame resistance,anti-rodent,termite resistant cable can be adjusted according to the customers’ demands.
