Standalone 16 PON EPON Optical Network Termination Device 1 USB Interface

  • 1
  • 2

Brand Name : Sopto

MOQ : Negotiable

Delivery Time : 15-20 working days

Payment Terms : T/T; L/C; Paypal

Model Number : SPO-ES16424

Packaging Details : 440*350mm*44mm(L*W*H)

Weight : 5.74kg

Size : 440*350mm*44mm(L*W*H)

Backplane Bandwidth : 88G

Power Consumption : 70W

USB Port : 1

Working temperature : 0～50℃

Contact Now

1 USB Interface Standalone 16 PON EPON OLT FTTH Network Terminal



SOPTO’s 16 PON port pizza-box EPON OLT provides 1 USB interface, 4GE(copper) and 4GE optical interface, 2*10Gb uplink interface, and 16 EPON ports for downstream. It can support 1024 ONUs under 1:64 splitter ratio.



Features



● 16 PON ports in 1U pizza-box EPON OLT

● 1 USB interface

● 2 uplink 10Gbps SFP slots

● 4 uplink GE optical SFP ports

● 4 uplink GE RJ45 copper ports

● Double 220VAC or -48VDC redundancy power supply



Specification
Size 440*350mm*44mm(L*W*H)
Weight 5.74kg
Backplane Bandwidth 88G
Power Consumption 70W
Power supply 220VAC AC: 90V～240V,47/63Hz
-48DC DC:-36V～-72V
Working environment Working temperature 0～50℃
Storage temperature -40～85℃Relative
Relative humidity 5～90% (Non-condensing)
Management Mode SNMP, Telnet, CLI management mode.
Management Ports 1*100BASE－TX outband port; 1CONSOLE port
USB Port QTY 1
Connector Type TYPE-C
Uplink Port QTY 10
Copper 10/100/1000M auto-negotiable,RJ45:4pcs
Optical interface 4 GE
10Gb uplink interface 2*10Gb
PON Port Quantity 16
Physical interface SFP slot
Connector Type 1000BASE-PX20+
Max splitting ratio 1:64

PON Port attribute



 Transmission distance 20KM
Port rate Symmetrical 1.25Gbps
Wavelength 1490nm TX,1310nm RX
Interface type SC/PC
Fiber type 9/125μm SMF (Single Mode Fiber)
TX Power +2.5～+7dBm
Rx Sensitivity -27dBm
Saturation power -6dBm
EPON Function

Support port-based rate limitation and bandwidth control;

In compliant with IEEE802.3ah Standard

Up to 20KM transmission Distance

Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different

LLID channels.

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

Support dynamic distance calculation on EMS online

Support RSTP, IGMP Proxy

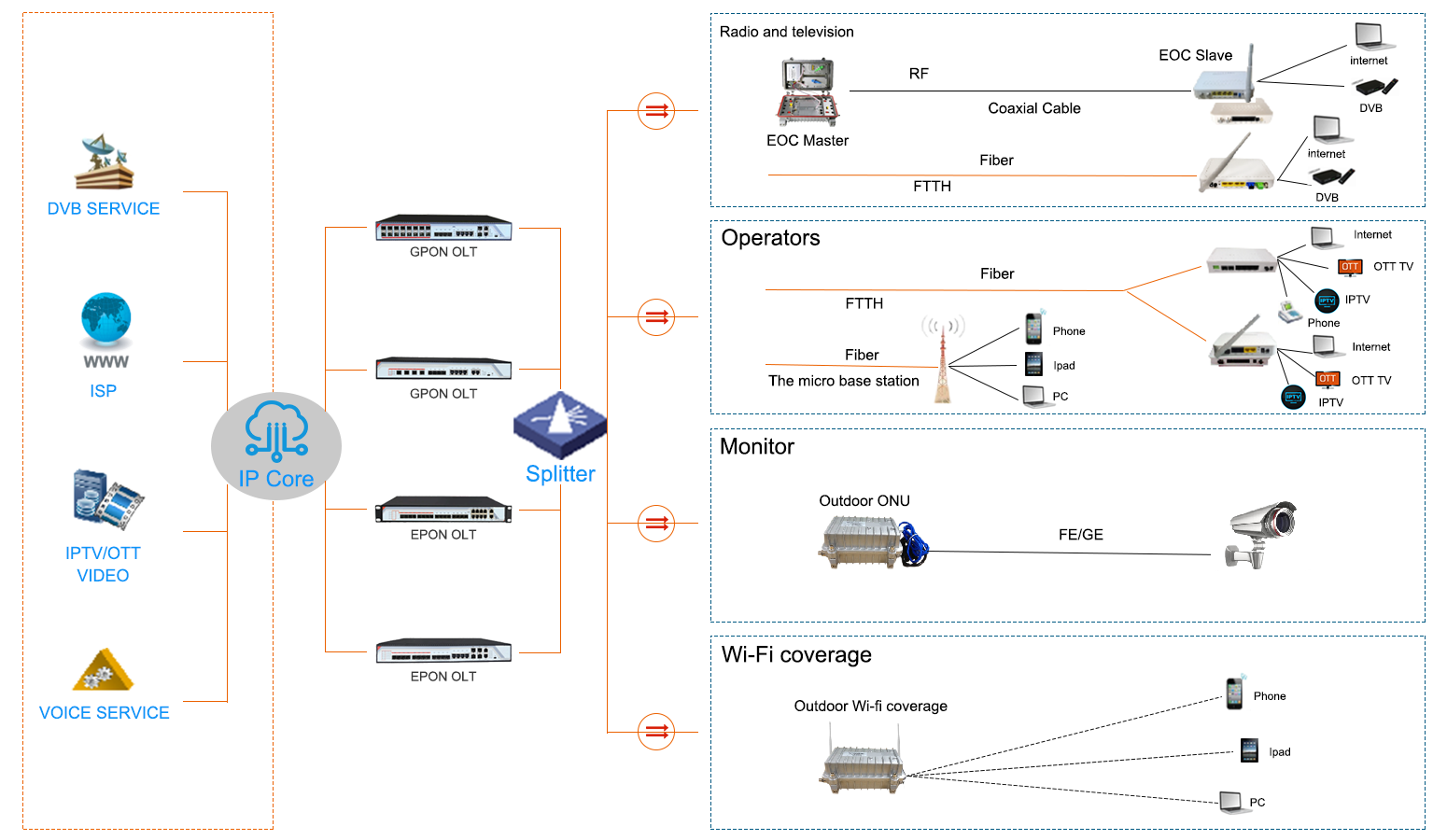

Application



Standalone 16 PON EPON Optical Network Termination Device 1 USB Interface



Applications in FTTH



Ordering Information





Product Model Configuration Notes
1U EPON OLT SPO-ES16424

1U standalone GPON OLT with 1 USB interface, 16 PON ports, 4 uplink gigabit optical ports,4 uplink UTP ports, 2 uplink 10-gigabit optical ports and power supply of 220VAC / -48VDC, support dual ower redundancy configuration

 without SFP modules
